Aluminum foil tape for underfloor heating

Short Description:

Description: Aluminum foil tape for underfloor heating purpose is a key material for graphene underfloor heating. As a thermal reflection material, the tape facilitates the even and rapid spread of heat, enhancing the heating speed and ensuring consistent indoor temperature.

Features:

High temperature resistance and chemical resistance

Uniform heat reflection and flow of moisture prevention

Tel:+8615724258855 Contact Email

【Product Detail】

Key Specifications/Special Features

Property

Value

Product Formation

BOPP/PET film, Release agent, Aluminum foil, Acrylic adhesive


Adhesive

Water-borne pressure sensitive adhesive

Solvent acrylic adhesive

Synthetic rubber-resin

Backing thickness

30μm-72μm

Total thickness

60μm-110μm

Application Temperature

-20-120

Normal sizing

Customizable

Rolling ball track

10#

180°Peel adhesion to steel

13.2N/25mm-19.75N/25mm

Tensile Strength

46N/25mm56N/25mm

Elongation

2%-3%

Holding force

72h/25mm

Remarks: The above data is tested under the room temperature 23℃, using the tape with water-borne pressure sensitive adhesive. Better adhesive type definitely will increase the testing performance. All specifications required such as width, length, thickness, type of adhesive can be customized.

Processing Steps

Coated silicon → Composite → Curing → Coated glue → Cutting

Applications

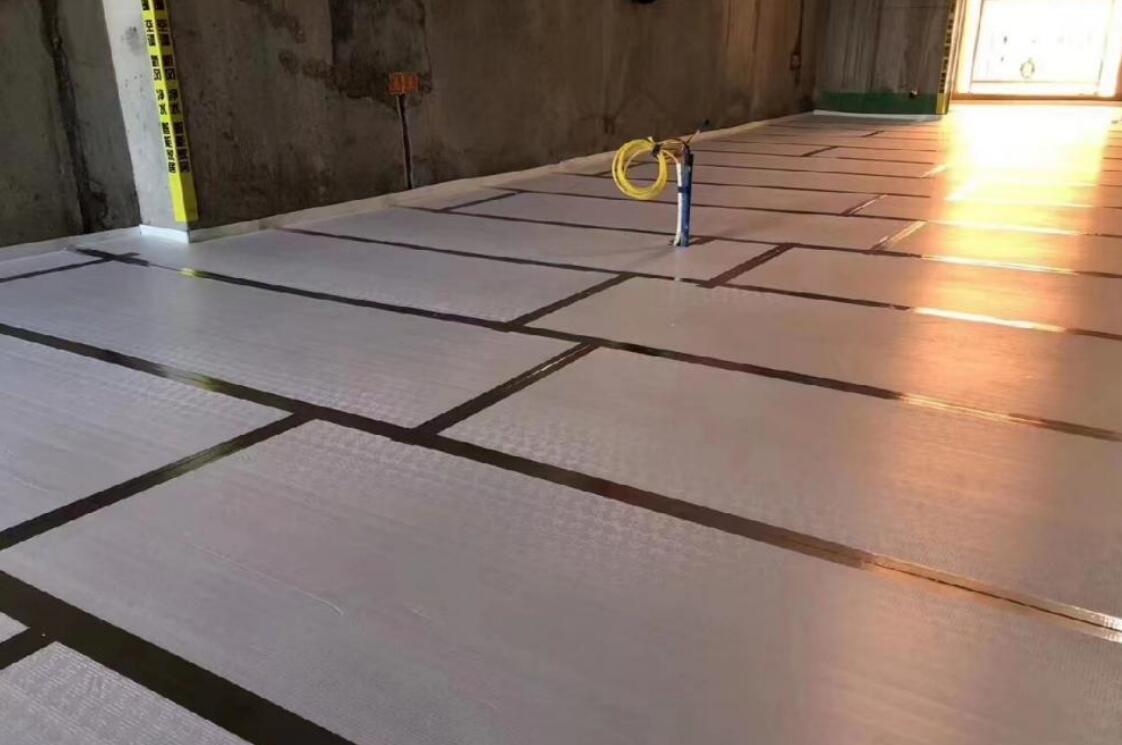

Suitable for the production of underfloor heating systems

Effectively isolating moisture and providing waterproofing


Packaging & Shippment

FOB Port: Ningbo
Lead Time:15- 30 days
Regular packaging :


Remarks: The packing varies from different specifications of the products.

Payment & Delivery

Payment Method: T/T in advance, Western Union, PayPal, L/C..

Delivery Details: by sea, by air, etc.

Primary Competitive Advantage

Manufacturer

Country of Origin

OEM&ODM

Small Orders Accepted

Experienced Staff

Form E

Sample Available

Factory Price

Reputation

Prompt Delivery

Product Performance

Professional Service

Customized

How To Get Price Faster

1)What is width and length of the tape required?
2)What is aluminum foil thickness required?
3)Lining paper required or not?
4)Other special requirements?
